RIGGING QUIZ  No.  25



GIVEN:

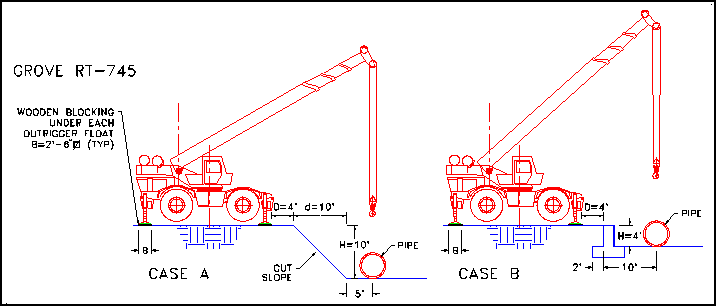

1.      Outrigger Float Diameter = 24”.

2.      Boom Is 81’ Long.

3.      Total Load (Load Block + Rigging + Pipe) = 14,000 lbs.

4.      Soil Is A Sandy Loam With A Bearing Strength Of 3000 psf (pounds per sq. ft.).





FIND:

1.       Is the crane positioned far enough away from the shoulder of the excavation?
      Case A:                        Yes_____          No_____  if no, what should “D” be?_______ft.
      Case B:                        Yes_____          No_____  if no, what should “D” be?_______ft.

2.       List five things to check for in regards to ground work prior to setting up a crane near a slope.


3.       Is the outrigger blocking area “B” large enough?
      Case A:            Yes_____          No_____
      Case B:            Yes_____          No_____

4.       In general, does the maximum outrigger loading occur at:
      A. Minimum radius with minimum boom & maximum load, or _____
      B. Extended radius with long boom & capacity load _____
