Maximum Reach Quiz No. 2

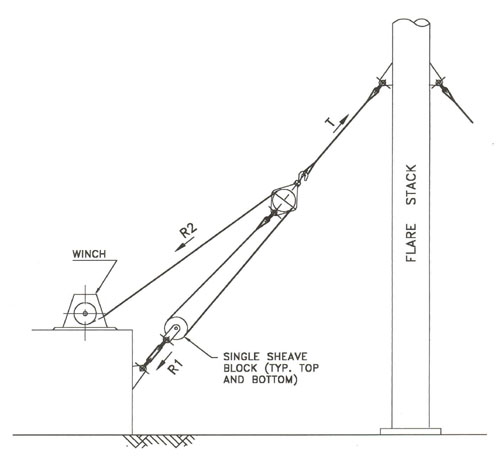

The tensioning system shown is one of three being used to plumb and support a flare stack. The other two tensioning systems are not shown for clarity.

How many parts of hoist line are there in the tensioning system shown below?

Two or Three?

Extra credit: If T = 3,000 lb,

what is: R1______________

what is: R2______________
